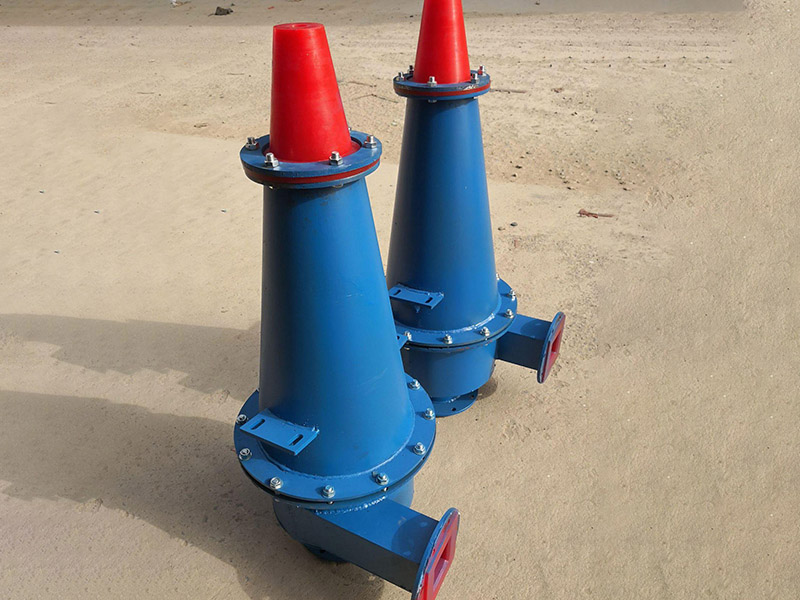

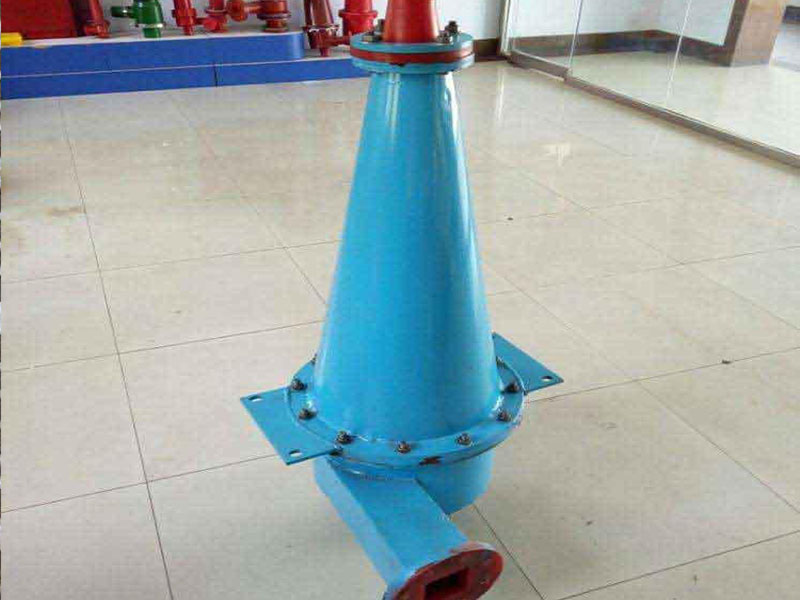

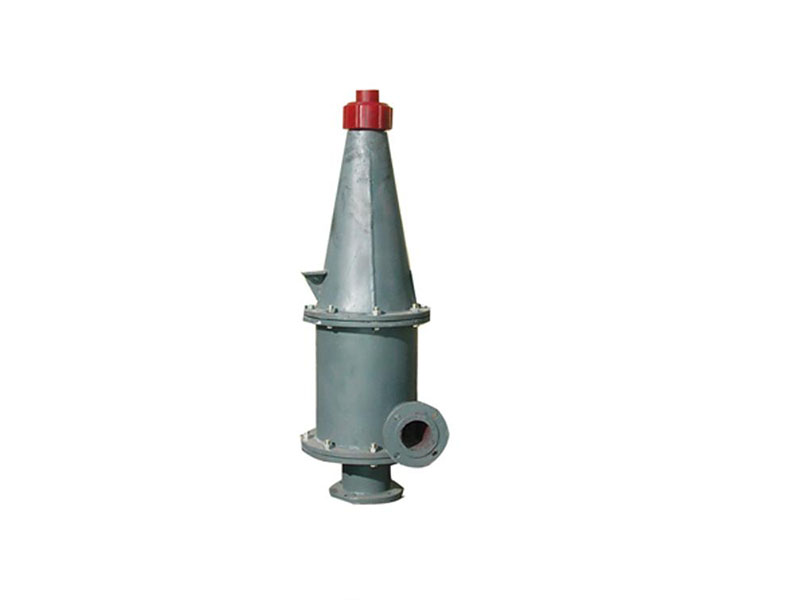

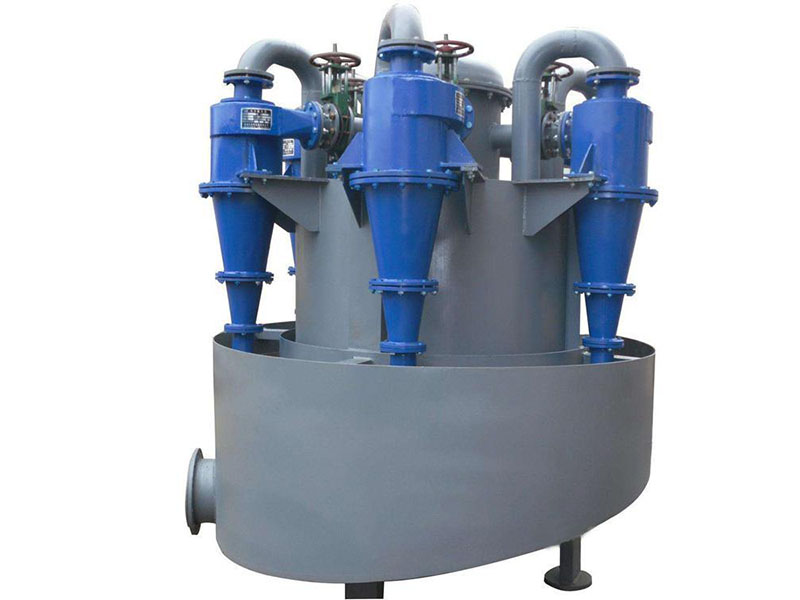

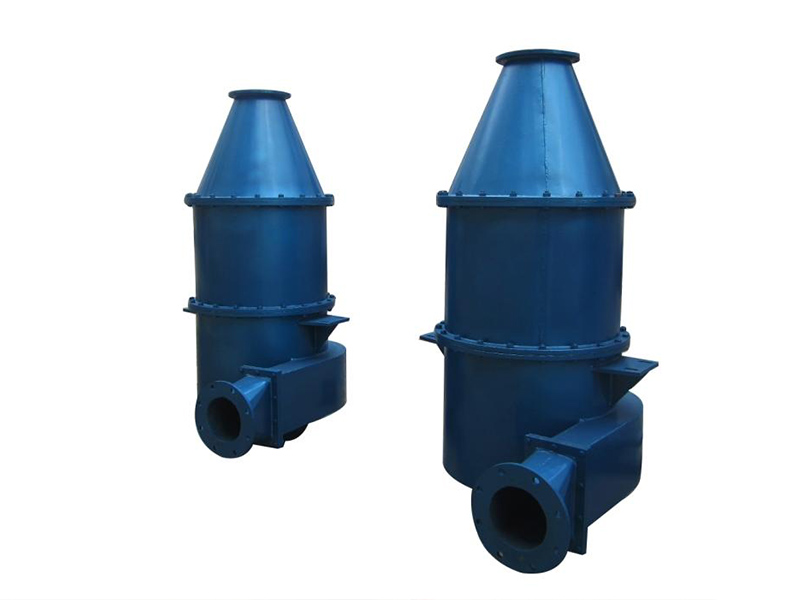

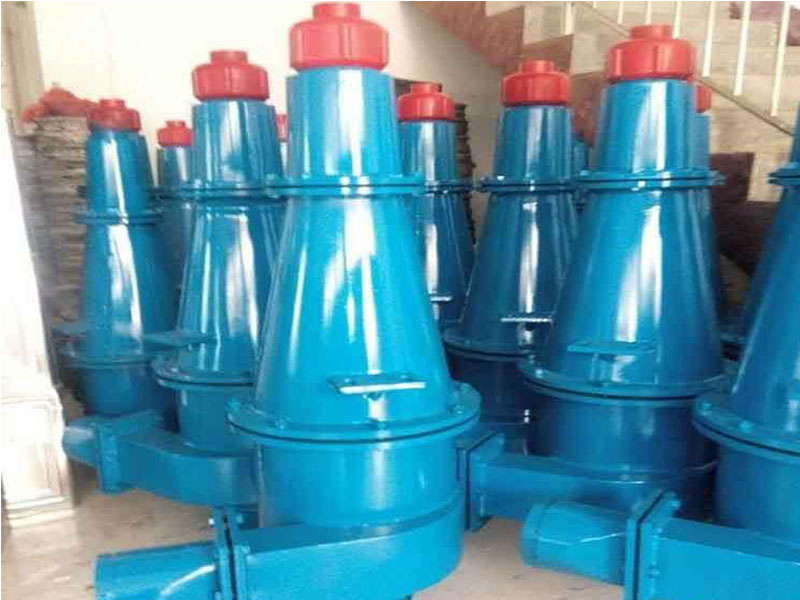

Cyclones for metal mines

Working principle of cyclone:The cyclone is based on the principle of centrifugal settlement and density difference, when the water flow enters the eq...

Enquire now Next

Product features

Working principle of cyclone:

The cyclone is based on the principle of centrifugal settlement and density difference, when the water flow enters the equipment tangentially from the inlet of the desanding device at a certain pressure, a violent vortex is generated, and the dense sand settles to the bottom and is discharged from the bottom sand discharge port. The clean water with low density is filtered upwards at the outlet by the rusty steel filter screen, so as to achieve the purpose of sand removal

Cyclone product features:

No energy consumption, sand removal effect, especially suitable for systems with high sand content. Simple structure, low cost, easy installation box operation, safe and reliable operation, no pollution to water quality. Compared with other sand removal equipment, it has the advantages of small size, large amount of water and small footprint. Wide range of applications, can be widely used in river water, well water sand removal, coal washing water treatment, industrial washing, liquid-solid separation and non-immutable solution separation.

Technical parameters:

1 Raw water turbidity≤ 300 degrees

2 Head loss 2mm

3 The turbidity of the effluent ≤ 10 degrees

4 Inlet water pressure≥ 0.2~0.25Mpa

5 Material: mild steel

6 Sand removal diameter≥ 0.1mm
